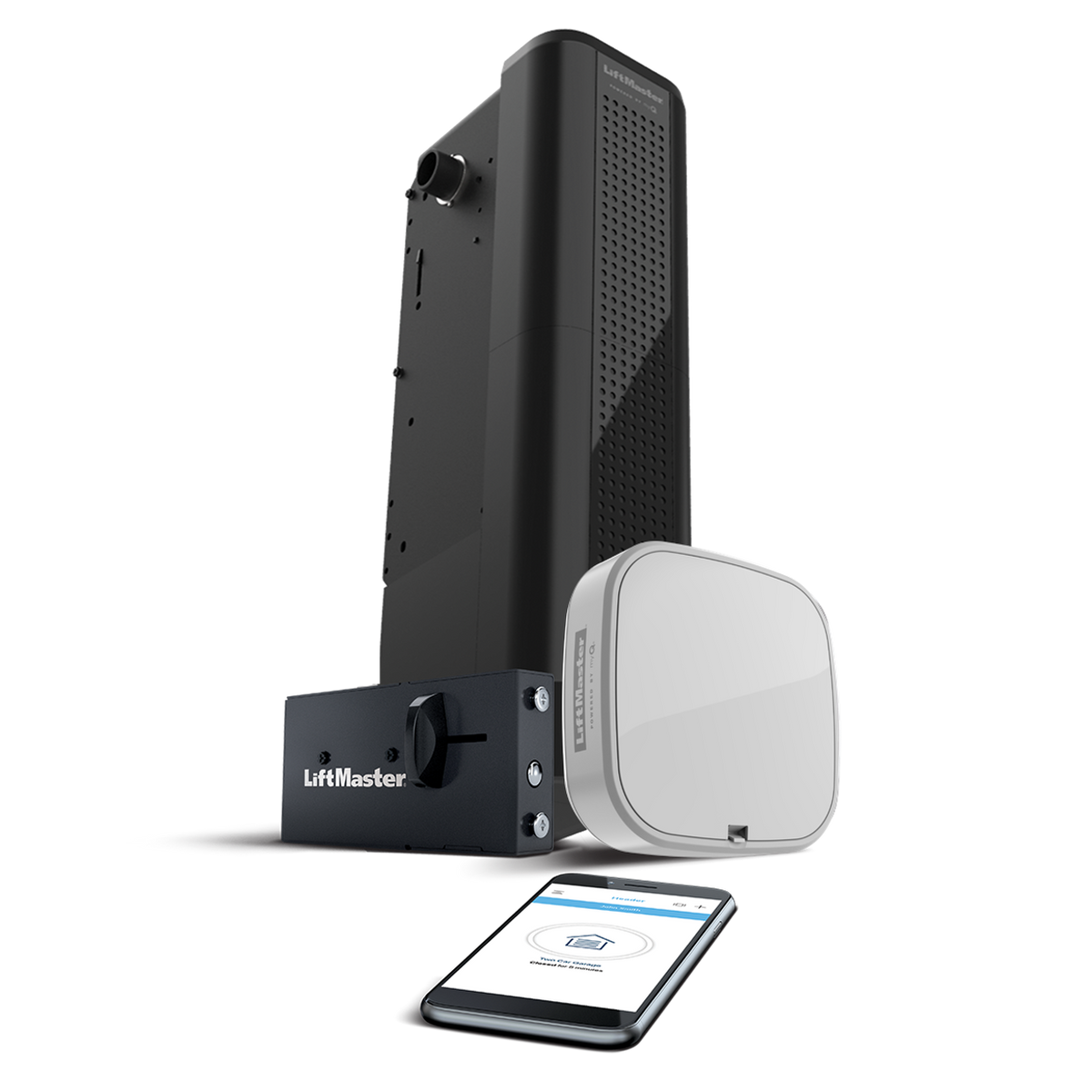

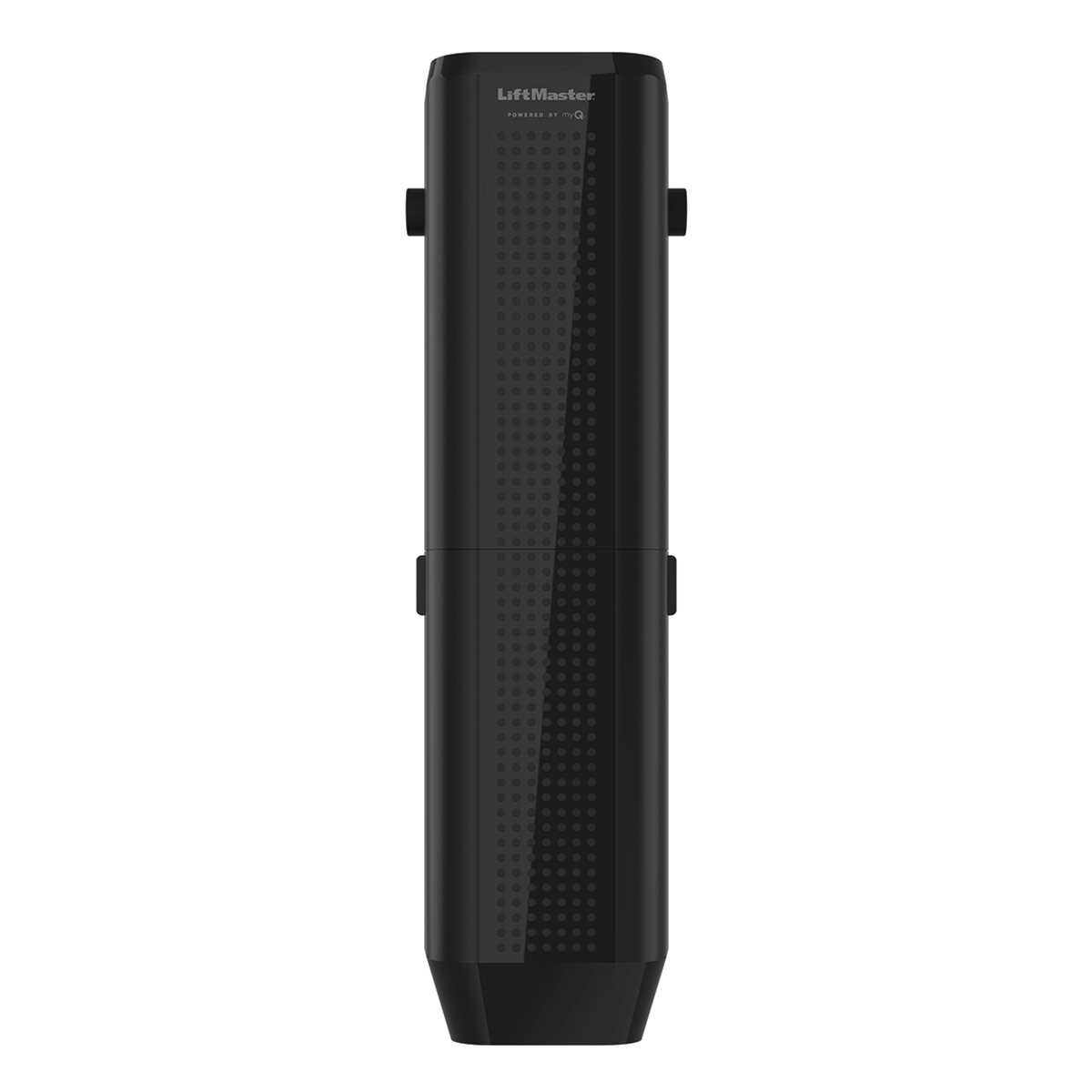

LiftMaster 98032 Wall Mount Opener
LiftMaster 98032 Wall Mount Opener
Couldn't load pickup availability
LiftMaster 98032 - $1,350 Installed
The LiftMaster 98032 mounts beside your door instead of overhead, freeing up your entire ceiling. It is the only residential wall mount rated to lift doors up to 1,100 lbs.
A Different Kind of Opener
- Rated to 1,100 lbs - The sole UL 325 certified residential wall mount at this capacity. Built for solid wood and oversized doors.
- Frees Your Entire Ceiling - No overhead rail. Room for storage racks, car lifts, or high-lift track.
- Nearly Silent, Vibration-Free - Fast, smooth operation even on tall and heavy doors.
- Integrated Battery Backup - DC-powered backup keeps the door working through a power outage.
- Automatic Garage Door Lock - Deadbolts the door every time it closes. Built in, not an add-on.
- Remote LED Lighting - Place light where you actually need it - up to 16 myQ light accessories.
- Built-In Wi-Fi & myQ - Full app control, monitoring, and shareable access. No hub required.
- No Cable Tension Monitor - Simpler, cleaner installation than older side-mount models.
- Lifetime Motor Warranty - Plus 5-year parts coverage.
98032 vs 6690
| Mount Type | 98032: Wall / Jackshaft / 6690: Ceiling |
|---|---|
| Max Door Weight | 98032: 1,100 lbs / 6690: Standard sectional |
| Ceiling Space Used | 98032: None / 6690: Full rail |
| Camera | 98032: Not included / 6690: 360-degree |
| Battery Backup | Included on both |
| Auto Door Lock | 98032: Built in / 6690: Not included |
| Warranty | 98032: Lifetime motor / 6690: Lifetime motor and belt |
| Price Installed | 98032: $1,350 / 6690: $1,045 |
Specifications
| Motor | 24V DC, 389W peak output |
|---|---|
| Drive Type | Wall Mount / Jackshaft |
| Max Door Weight | 1,100 lbs (UL 325 certified) |
| Battery Backup | Included - integrated DC |
| Lighting | Remote LED, up to 16 myQ accessories |
| Connectivity | Built-in Wi-Fi (myQ App) |
| Security | Automatic Garage Door Lock, Security+ |
| Included | One remote |
| Warranty | Lifetime motor, 5-year parts, 1-year battery |
| Replaces | 98022, 8500W |
| Door Height | 7' standard; 8' +$100 |
Security note: These 2026 openers ship with Security+ 3.0 remotes. Older Security+ 2.0 remotes and keypads will not pair.
Professional installation automatically added at checkout.
