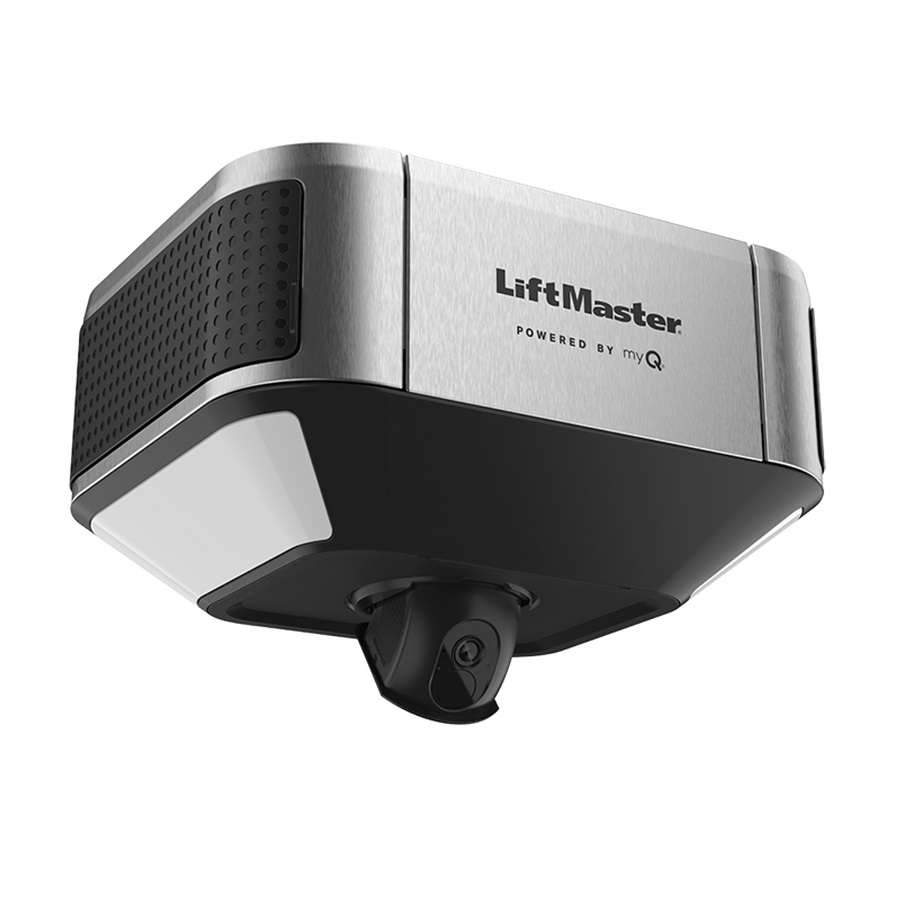

LiftMaster 6580 Belt Drive Opener
LiftMaster 6580 Belt Drive Opener
Couldn't load pickup availability
LiftMaster 6580 - $995 Installed
The LiftMaster 6580 is where quiet starts. A belt drive with battery backup and a fully adjustable 360-degree camera - the right pick if there is living space above or beside your garage.
Everything in the 2220, Plus More

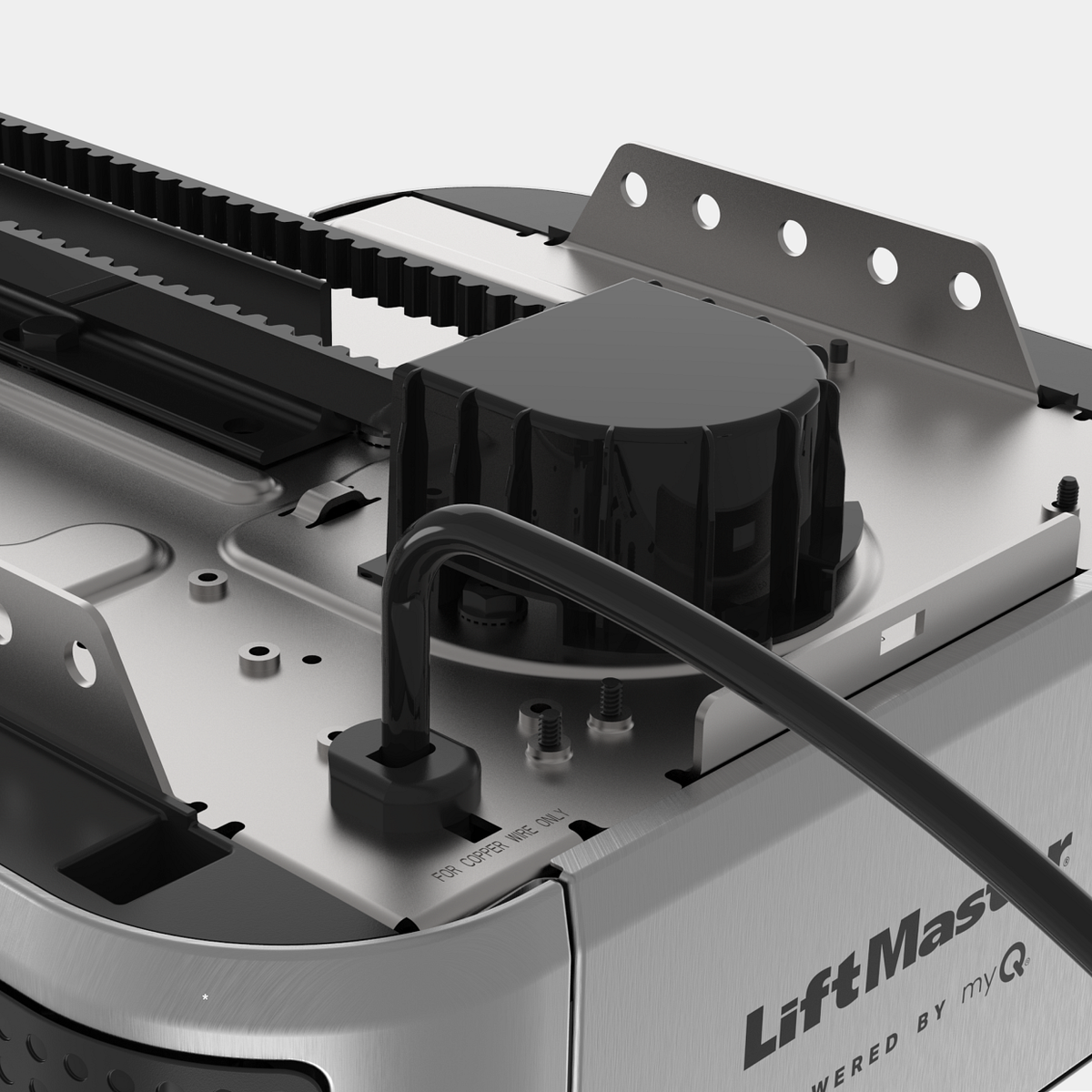

- 1 HP Belt Drive - Reinforced belt and DC motor glide the door with minimal noise. Quieter than a dishwasher.
- Battery Backup Included - Up to 40 open/close cycles during an outage. Recharges automatically when power returns.
- 360-Degree Adjustable Camera - Full night vision and a wide-angle lens you can aim wherever you need it. Live view through myQ.
- Dual LED Lighting - Motion-activated on both sides for even coverage across the whole garage.
- myQ App Control - Open, close, monitor, and share access from anywhere. Real-time alerts.
- Security+ 3.0 - Encrypted rolling code on every use. PosiLock guards against forced opening.
- Motion-Detecting Wall Control - Lights come on as you walk in. One remote included.
- 6-Year Motor & Belt Warranty - Longer coverage than the 2220.
6580 vs 6690
| Motor | 6580: 1 HP Belt / 6690: 1-1/4 HP Belt |
|---|---|
| Lighting | 6580: Dual LED / 6690: Corner-to-Corner |
| Battery Backup | Included on both |
| Camera | 360-degree on both |
| Included Remotes | 6580: One / 6690: Two + keypad |
| Wall Control | 6580: Motion-detecting / 6690: Smart wall control |
| Warranty | 6580: 6 yr motor and belt / 6690: Lifetime motor and belt |
| Price Installed | 6580: $995 / 6690: $1,045 |
Specifications
| Motor | 1 HP (1000N) DC |
|---|---|
| Drive Type | Belt Drive |
| Camera | 360-degree adjustable, wide-angle, night vision |
| Battery Backup | Included - up to 40 cycles, auto-recharging |
| Lighting | Dual LED, motion-activated |
| Connectivity | Wi-Fi (myQ App) |
| Security | Security+ 3.0, PosiLock, Alert-2-Close |
| Included | Motion-detecting wall control, one remote |
| Warranty | 6-year motor and belt |
| Replaces | 84505R, 84504R, 84602 |
| Door Height | 7' standard; 8' +$100 |
Security note: These 2026 openers ship with Security+ 3.0 remotes. Older Security+ 2.0 remotes and keypads will not pair.
Professional installation automatically added at checkout.
Materials
Materials
Installation & Warranty
Installation & Warranty
Dimensions
Dimensions
Care Instructions
Care Instructions
Share
Installed LiftMaster packages
Choose the LiftMaster opener that fits your door and upgrade goal. Affordable Door packages the opener with professional installation so a technician can handle mounting, setup, testing, and cleanup.
-
Nationwide Installation
Affordable Door LiftMaster openers are professionally installed by certified technicians. Choose your opener and book installation online during the product flow.
-
Upgrade & Repair Fit
Good fit for customers replacing a failing, loud, unreliable, or outdated garage door opener. Compare drive type, motor strength, warranty, and replacement model before booking.
